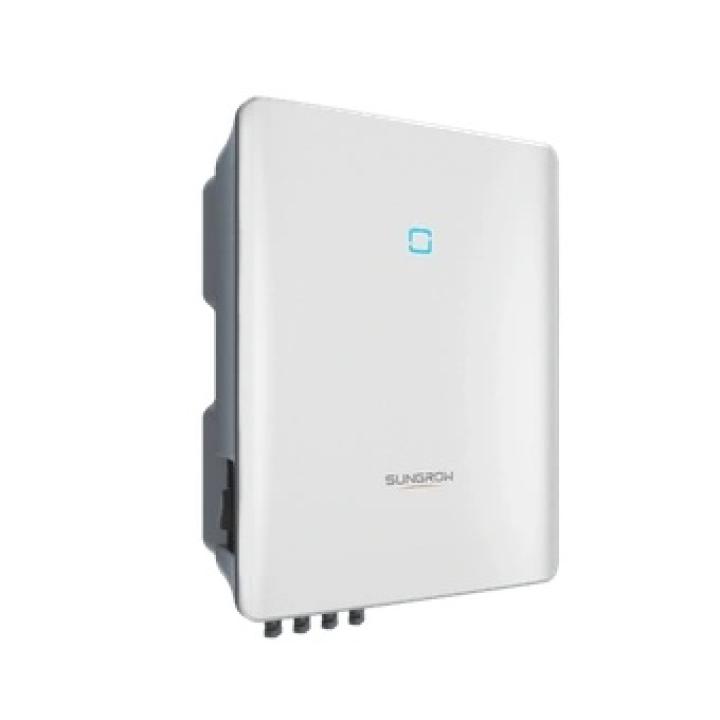

Invertor Sungrow SG12RT 12kw trifazat

0 stars: 0.00 din 0 pareri

2590 lei Lei
Out Of stock
Descriere
Invertor Sungrow SG12RT 12kw trifazat

Detalii produs:

Product details Series Name SG5.0/6.0/7.0/8.0/10/12RT Series AC Power Range (kW) 5.0-12 Model Name SG12RT Product Warranty (Years) 10 Maximum DC Power (kW) 18 Max. DC Voltage (V) 1100 Max. DC Current (A) 37.5 Strings per single MPPT 2/1 DC Inputs 2 Connectors MC4 Maximum AC Power (kW) 13.2 Output AC Voltage Range (V) 180-276/311-478 Nominal AC Voltage (V) 220/380, 230/400, 240/415 Maximum AC Current (A) 20 Nominal AC Current (A) 17.4 Frequency Range (Hz) 45-55/55-65 Frequency (Hz) 50/60 Power Factor > 0.99 / 0.8 leading - 0.8 lagging Maximum Efficiency (%) 98.5 Euro Efficiency (%) 97.9 Operating Temperature Range (C) -25 ~ +60 Protection Class IP65 Display LED Protection Features Grid monitoring DC reverse connection protection AC short-circuit protection Leakage current protection Surge Protection Ground fault monitoring DC switch PV String current monitoring Arc fault circuit interrupter (AFCI) PID recovery function Dimensiuni: Inaltime (mm) 490 Latime (mm) 370 Adancime (mm) 195 Greutate (kg) 18 kg Fisa tehnica
